Captive Portal
captive portal is a web page that users must interact with before accessing a public network. It's often used by public venues that offer free Wi-Fi, such as airports, hotels, and coffee shops
Gartner Given Terms
Gartner Magic Quadrant
The Gartner Magic Quadrant is a research report that helps identify and assess the top 10-12 players in a specific global market
It provides a visual representation of different types of technology providers and their position in fast-growing markets.
SASE(Secure Access Service Edge)
- All users in branch office, home, roaming(airport) if he want to access any of cloud service()
he will go thru SASE.
- Examples:
Juniper Secure Edge,
ZScaler Zero Trust SASE,
Cisco Umbrella
- Example
- Consider a multinational corporation(HCL Tech) with branch offices across different regions. Each office requires secure access to the corporate network(eg: Jira) and cloud-based applications(eg: google drive).
| N/W Without SASE | N/W With SASE |
|---|---|
|

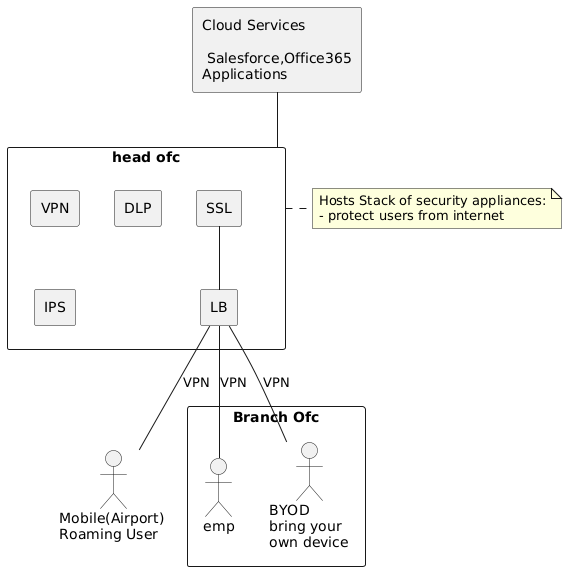

Challenges: How can change my Network when? - More users are moving out of office(WFH, Roaming, BYOD(bring your own device)) - Companies have central HQ, where branch offices connect via WAN, home users via VPN(but also connecting to cloud directly) - How to do authentication, authorization
@startuml
skinparam componentStyle rectangle
rectangle "Branch Ofc" as bo {
actor "emp" as emp
actor "BYOD \nbring your\nown device" as byod
}
rectangle "head ofc" as ho {
[VPN] as vpn
[SSL] as ssl
[DLP] as dlp
[IPS] as ips
[LB] as lb
lb -u- ssl
}
actor "Mobile(Airport) \nRoaming User" as ru
[Cloud Services \n\n Salesforce,Office365\nApplications] as cloud
note right of ho
Hosts Stack of security appliances:
- protect users from internet
end note
ru -u- lb: VPN
byod -u- lb: VPN
emp -u- lb: VPN
ho -u- cloud
@enduml
|
Solving the Challenges - All security policies are applied, a single n/w stack is provided Benefits - Uplevel my security - Simplify my N/w(as devices for VPN,LB,FW,SSL,DLP,IPS sitting in HQ) can be removed - Branch office to HQ WAN not needed this Saves Million of $
@startuml
skinparam componentStyle rectangle
[Netskope client] as nsc #pink
rectangle "Branch Ofc" as bo {
[Netskope client1] as nsc1 #pink
[Netskope client2] as nsc2 #pink
actor "emp1" as e1
actor "emp2" as e2
e1 -u- nsc1
e2 -u- nsc2
}
actor "Bob\n(Airport) Roaming" as bob #red
[\t\tAWS \n\n Applications, Data] as aws
[\t\tAzure \n\n Applications, Data] as azure
[\t\tGCP \n\n Applications, Data] as gcp
cloud {
[internet]
}
cloud {
[internet2]
}
cloud {
[internet3]
}
cloud {
[internet4]
}
rectangle "SASE(Service on Cloud) = Netskope One Cloud" as r {
[Center (US)] as center
rectangle "PointofPresence \n\n POP1 (Virginia) \n Services:FaaS, AuuS" as pop1 {
[DLP] as dlp
[ZTNA] as ztna
[SWG] as swg
[CASB] as casb
}
[POP2 (Europe)] as pop2
}
rectangle "Okta(Auth Provider)" as ok
skinparam databaseBackgroundColor Aqua
database "Active Directory(Identity Provider)" as ad
center -- pop1
center -- pop2
internet -r- ad
center -r- internet : Authentication
internet -d- ok
swg -- internet2
internet2 -- nsc
nsc -- bob
nsc1 -u- internet4
nsc2 -u- internet4
internet4 -u- casb
center -up- internet3 : services
internet3 -u- aws
internet3 -u- azure
internet3 -u- gcp
@enduml
|
SDWAN (Software-Defined Wide Area Network)
What?
- Helps organizations to connect branch offices, central office(HQ), Services on cloud in fast, cost effective way
- Uses SDN(software defined network) to separate hardware and control mechanisms.
Example
- Consider a retail chain(Relaince) with numerous branch offices across the country.
- Each branch office(store) requires reliable connectivity to Central or HQ services(eg: DB) to POS devices.
- 1 solution is to use MPLS for connectivity
between stores and headquarters(But this is expensive), other is SD-WAN.
- With SD-WAN retail chain achieves cost savings, improved application performance
SSE (Secure Service Edge)
What?
Gartner gave SSE term in year 2021 to define limited scope of network security convergence
Includes SWG, CASB, DLP,
FaaS, ZTNA into a single cloud native service.
CASB, SWG, SASE
| CASB(Cloud Access Security Broker) | SWG(Secure Web Gateway) | SASE | |
|---|---|---|---|
| Subset of SASE | Yes | Yes | |
| Purpose | Protects applications sitting on cloud (SaaS, IaaS, PaaS) |
Protects web traffic going to cloud to access applications |
Networking, Cloud services converged under 1 umbrella |
| Features | DLP, Access Control | SSL Inspection, Malware Detection | SWG, SD-WAN, ZTNA, CASB |
| Deployment | Cloud based(mostly) | Cloud & onprem | cloud based |
| Use Cases |
Protecting data in cloud applications Compliance with regulatory requirements |
Securing web browsing for employees Blocking malicious web content |
Security information and event management(SIEM)
This is a Solution that helps organizations recognize and address potential security threats and vulnerabilities.
It can detect user behavior anomalies(Eg: from Active Directory event logs).
(Early Days) SIEM platforms were log management tools, They enabled real-time monitoring and analysis of security-related events.
(Present Day) SIEM software has evolved to incorporate user and entity behavior analytics (UEBA) & other advanced AI methods
to identify anomalous behaviors and indicators of advanced threats.
How SIEM Works?
1. Collect logs(from wide range of sources(on-premises and cloud environments)
2. Consolidate and sort to identify threats and adhere to data compliance requirements.
Software Defined Networking
Separating S/W from H/W. Routers, Switches can be controlled remotely.
Forwarding Plane(lies on Switch), Control Plane(lies on GUI).
Controlling switches routing decisions from GUI. Person does not have to go physically to control/change Switch/Router.
@startuml
skinparam componentStyle rectangle
[GUI1] as gui1
[GUI2] as gui2
[SDN App1] as app1
[SDN App2] as app2
[SDN-Controller-Server(Control Plane)] as con
[switch-chip1(Data Plane)] as sc1
[switch-chip2(Data Plane)] as sc2
[switch-chip3(Data Plane)] as sc3
gui1 <--> app1
gui2 <--> app2
app1 <--> con
app2 <--> con
con <--> sc1
con <--> sc2
con <--> sc3
@enduml
