What is CDN(Content delivery network) / Virtual Ghost
-
Servers storing static content(Homepage, Videos, image, Java script files etc) near to client.
This is a Overlay Network
CDNs can store dynamic contents(but this is still under progress).

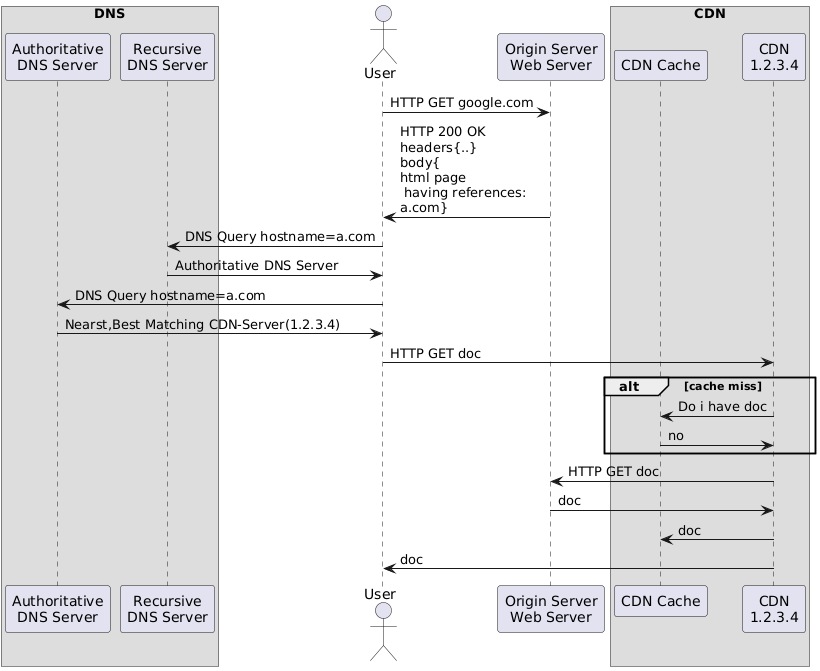

CDN serving web page to Browser
@startuml
box DNS
participant "Authoritative\nDNS Server" as adns
participant "Recursive\nDNS Server" as ns
end box
actor User as u
participant "Origin Server\nWeb Server" as os
box CDN
participant "CDN Cache" as cdncache
participant "CDN\n1.2.3.4" as cdn
end box
u -> os: HTTP GET google.com
os -> u: HTTP 200 OK\nheaders{..}\nbody{\nhtml page \n having references:\na.com}
u -> ns: DNS Query hostname=a.com
ns -> u: Authoritative DNS Server
u -> adns: DNS Query hostname=a.com
adns -> u: Nearst,Best Matching CDN-Server(1.2.3.4)
u -> cdn: HTTP GET doc
alt cache miss
cdn -> cdncache: Do i have doc
cdncache -> cdn: no
end
cdn -> os: HTTP GET doc
os -> cdn: doc
cdn -> cdncache: doc
cdn -> u: doc
@enduml
|
|
|
