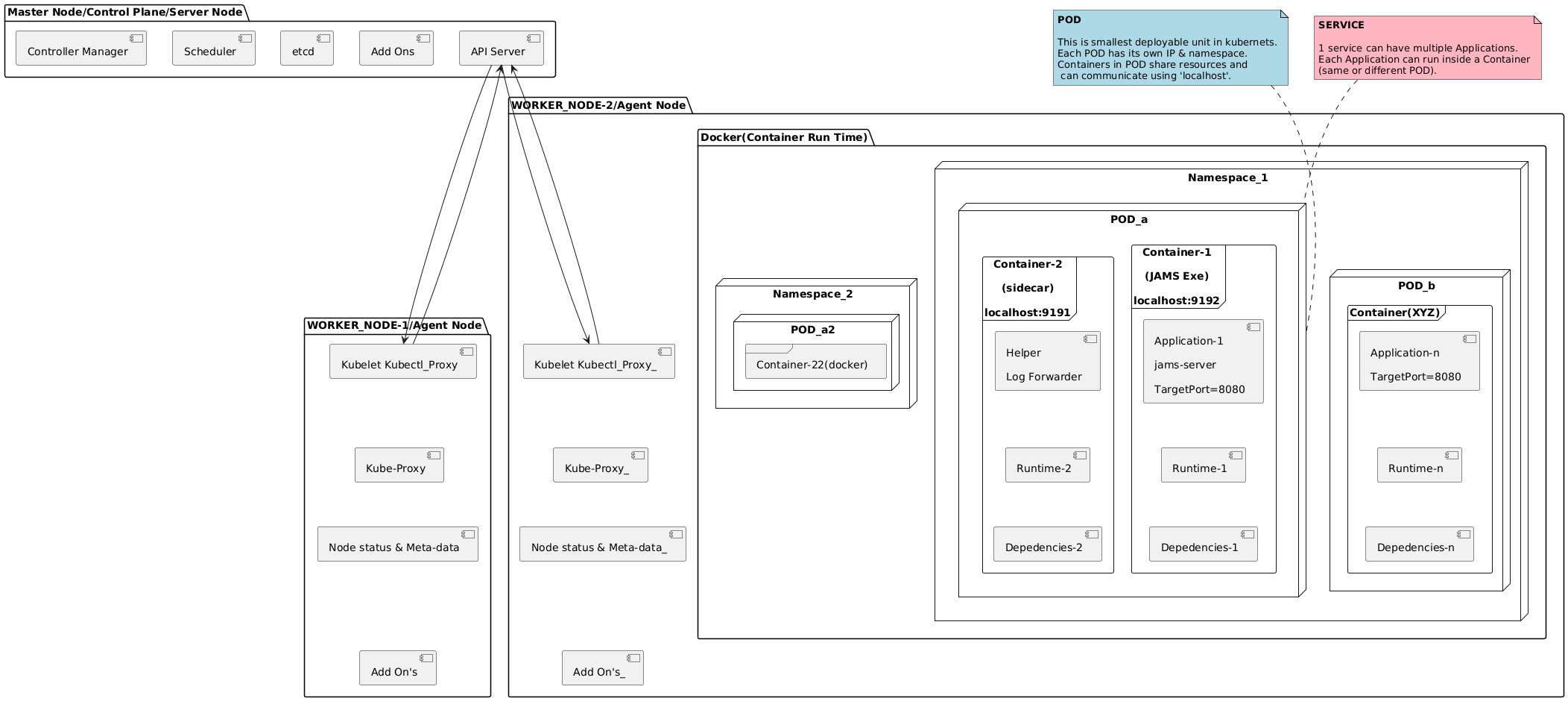

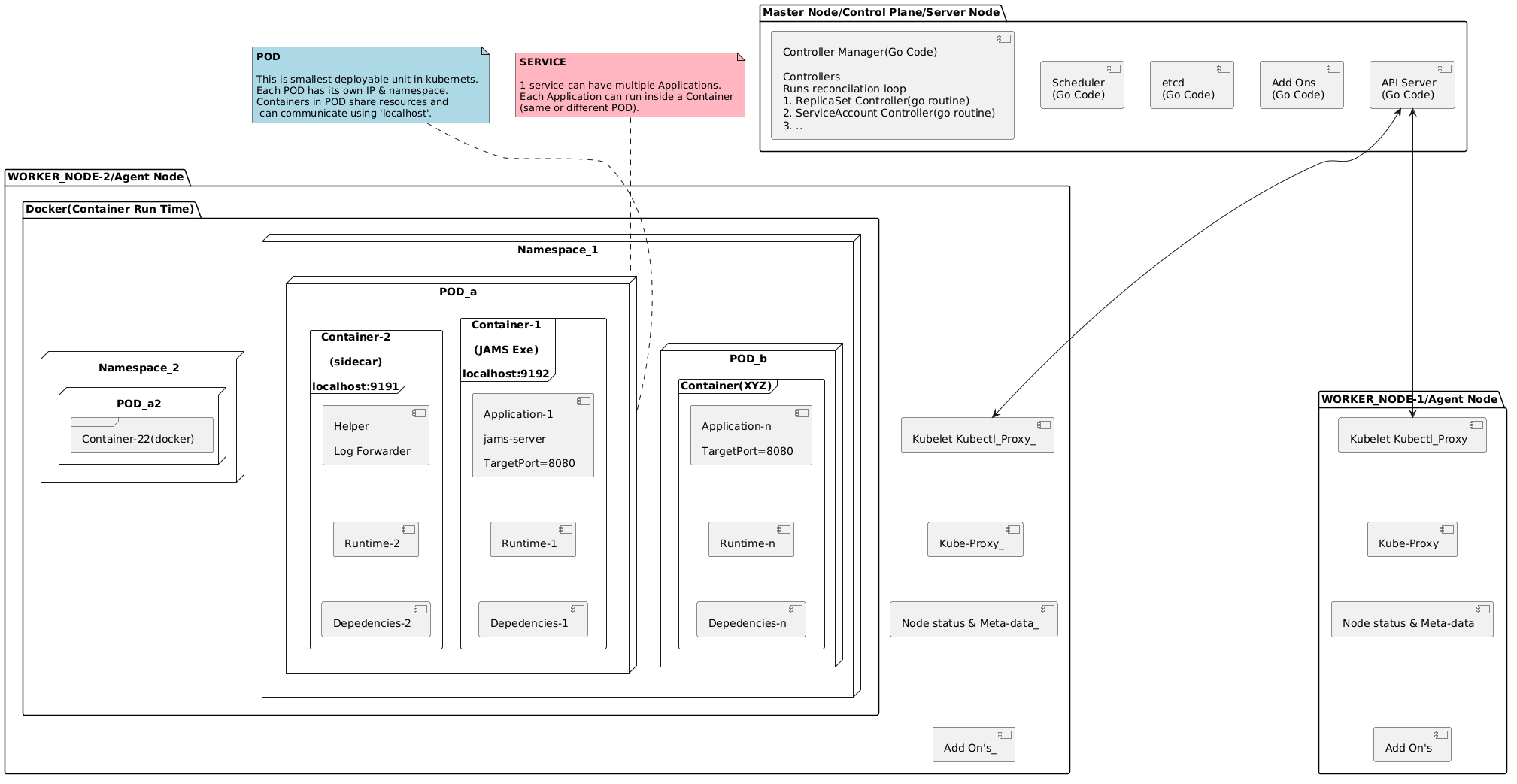

Kubernets Architecture

flowchart TD
    subgraph Master["Master Node / Control Plane"]
        CM["Controller Manager"]
        SCH["Scheduler"]
        ETCD["etcd"]
        AO["Add Ons"]
        API["API Server"]
    end

    subgraph W1["WORKER_NODE-1 / Agent Node"]
        W1Idle["idle worker"]
    end

    subgraph W2["WORKER_NODE-2 / Agent Node"]
        KP2["Kubelet / kubectl proxy"]
        KProxy2["Kube-Proxy"]
        Meta2["Node status and metadata"]
        AddOns2["Add Ons"]

        subgraph Docker["Docker - container runtime"]
            subgraph NS2["Namespace_2"]
                POD_a2["POD_a2"]
                C22["Container-22 docker"]
            end

            subgraph NS1["Namespace_1"]
                subgraph POD_a["POD_a"]
                    subgraph C2["Container-2 sidecar localhost:9191"]
                        H2["Helper<br>Log Forwarder"]
                        R2["Runtime-2"]
                        D2["Depedencies-2"]
                    end
                    subgraph C1["Container-1 JAMS localhost:9192"]
                        A1["Application-1<br>jams-server<br>TargetPort=8080"]
                        R1["Runtime-1"]
                        D1["Depedencies-1"]
                    end
                end

                subgraph POD_b["POD_b"]
                    subgraph CXYZ["Container XYZ"]
                        An["Application-n TargetPort=8080"]
                        Rn["Runtime-n"]
                        Dn["Depedencies-n"]
                    end
                end
            end
        end
    end

    Note_NS1["Namespace can have multiple pods"]
    Note_Pod["Pod can have multiple containers"]
    C22 -.-> Note_NS1
    A1 -.-> Note_Pod

    API --> W1Idle
    API --> KP2
    API --> KProxy2


Master Node/Control Plane

User Interacts with Master node(using yaml file). Master node create/destroy worker nodes. Daemons in Master node

1. API Server

Manages all communication with Worker nodes(using kubelet)

2. etcd store

Stores state of kubernets cluster

3. Scheduler

Schedules pods to run on worker nodes

How Scheduler Decides Where to Place Pods? (Filtering, Scoring, Binding)

1. Filtering:
  The scheduler looks at all the worker nodes in your cluster and eliminates any node that cannot run the pod.
  Does the node have enough free CPU and memory (requests/limits)? Does the pod require a specific port that is already in use?
2. Scoring:
  Filtered Nodes are given score from 0 to 100 based on a set of ranking rules.
3. Binding:
  Highest rank node wins. Scheduler decides to place pod on it and sends message back to API server

4. Controller Manager (go process)

Controller manager is a go process which runs several Controllers/Operators as goroutines
Once state changes of Pod goes down, Controller Manager updates same to API server and asks kubelet to correct the state. Check Sequence Diagram here

5. Addons

Provides additional functionality

Worker Node = VM

Worker node is seperate installation(eg: VM). When load increases pods inside worker nodes will be scaled.
We would need Cluster scalar(eg: Karpenter) which will automatically spawn a new worker node on load
Worker node handles workload. Worker nodes hosts PODS. 1 Pod can contain 1 or more containers, Eg: docker.
Deamons in Worker Node

Kubelets

Recieves instructions from API Server to run/manage container.

Container Runtime

This actually runs the container. Several runtimes kubernets supports: Docker, containerd, CRI-O

Kube-proxy

For communication with other nodes in cluster

Add-Ons

Additional functionality.

Node status & Meta-data

Each worker node maintains meta-data about itself. Example: IP Address, hostname, Current status (Ready, Not Ready, Out of Disk space etc)

POD (Inside Worker Node)

POD is smallest deployable unit in kubernets. 1 Pod can contain 1 or more containers
Each POD has its own: IP & namespace. Containers in POD share resources and can communicate using 'localhost' and can share storage volumes. Memory is allocated to Pods using Volumes.

Can Container has multiple executables running?
Yes, But its not recommended. Container should ideally run only 1 process.

Terms

Ambassador API Gateway, Namespace, Ports(Nodeport, ContainerPort, HostPort), PVC(Persistant Volume Claims), Authorization(Service Tokens, Istio Authorization Policy)

kubelet

kubectl is a command-line tool used by humans to send commands to the API-Server(on control plane). kubectl command directly reaches API server, does not route via kubelet.
