What is Bump

Bump is battery efficient location sharing + Chatting Mobile App.
Location Sharing
  A group of friends installs bump on their phones and all can track each other's location, speed, battery.
  There can be ghost mode, where you donot share your location with your friends.
  If you ask from Bump, How can i get to friend location it will provide location points to reach there(via 3rd party apps like google map etc)
  Bump can also store location history, list of places you visited earlier
  Phone1 can see location of Phone2 on bump. Helpful if someone is travelling alone in new area
Chat
  send messages, stickers, images, videos, 1:1 or group chats

Why someone chooses Bump over Google map

Social Graph
You can draw of graph of your friends

            🧑 Sarah
                ↓
        ┌─────────────┐
        │             │
🧑Mike │    📍 You   │  🧑 John
        │             │
        └─────────────┘
                ↑
            🧑 Alex

Requirements

Functional
1. Friends can share their current locations with selected friends
2. Friend can see their friends' current locations and obtain directions to a friend's current location
Non Functional
1. Low latency: Location changes should reach authorized friends within a few seconds under normal conditions.
2. Battery efficiency: System should support frequent location updates without excessively draining

BOE

Let, Total Bump App installs: 10M
DAU(Daily active users): 20% = 2M
Every phone sends location update every: 10 seconds
Ingestion: Incoming packets: 2M/10 = 200K requests/sec
Fanout: 1 user has 50 friends, but 10 are online. Location updates are sent to online friends only. Fanout = ~200K x 10 = ~2M messages/sec
Storage: Let every incoming request=200 bytes. 200K requests/sec. 200K x 200 = 40 MB/sec storage. 40Mx86400 = 3.5 PB/day

HLD

flowchart LR

    A["User A Phone"]
    GLB["Global
 Regional LB"]

    subgraph K8S["AWS Managed Kubernetes Cluster"]
        direction LR

        ING["Kubernetes
Ingress"]

        subgraph INGEST["Ingestion Tier"]
            direction TB
            I3["Location Pod N"]
            I1["Location Pod 1"]
            I3 ~~~ I1
        end

        RP[("Redpanda Cluster")]

        subgraph PROC[" "]
            direction TB

            subgraph CROW[" "]
                direction LR
                subgraph CONSUMERS["Consumer / Processing Tier"]
                    direction TB
                    C3["Location Consumer N"]
                    C1["Location Consumer 1"]
                    C3 ~~~ C1
                end
                CUR[("Current Location
ScyllaDB")]
            end

            subgraph FROW[" "]
                direction LR
                subgraph FANOUT["Fanout Tier"]
                    direction TB
                    F3["Fanout Pod N"]
                    F2["Fanout Pod 2"]
                    F3 ~~~ F2
                end
                FRIEND[("Friendship / Privacy
ScyllaDB / PostgreSQL")]
            end
        end

        subgraph WS["WebSocket Gateway Tier"]
            direction TB
            W3["WS Pod N"]
            W1["WS Pod 1"]
            W3 ~~~ W1
        end

        REDIS[("Redis
Connection Registry")]
    end

    B["User B Phone"]

    %% LOCATION INGESTION
    A -->|"Location update"| GLB
    GLB --> ING
    ING --> INGEST
    INGEST --> RP

    %% LOCATION STORAGE
    RP --> CONSUMERS
    CONSUMERS --> CUR

    %% FANOUT
    RP --> FANOUT
    FANOUT --> FRIEND
    FANOUT --> WS

    %% B OPENS WEBSOCKET (via LB; B stays a sink on the right)

    %% CONNECTION REGISTRY
    WS --> REDIS

    %% SERVER SIDE DELIVERY
    WS -->|"LocationUpdate(A)"| B

    style PROC fill:none,stroke:none
    style CROW fill:none,stroke:none
    style FROW fill:none,stroke:none

User A registers, installs app on his phone

sequenceDiagram
autonumber

    actor A as User A Phone
    participant GLB@{ "type" : "boundary" } as Global LB
Regional LB
    box AMO AWS/Datacenter
        participant API@{ "type" : "entity" } as API Gateway
        participant K8LB@{ "type" : "entity" } as K8s LB
        participant AUTH@{ "type" : "collections" } as Auth/User Svc
MULTIPOD
        participant DB@{ "type" : "database" } as User DB
        participant DEVICE@{ "type" : "database" } as Device Store
    end
    participant IDP@{ "type" : "collections" } as IDP


    A->>GLB: HTTPS POST Register(email/phone, name)
    GLB->>API: HTTPS
    API->>K8LB: HTTP
    K8LB->>AUTH: Create user
    AUTH->>IDP: Authenticate user
    IDP->>A: Enter user/pass
    A->>IDP: User/pass
    Note over IDP: User/pass valid
    IDP-->>A: JWT Token
    Note over A: Store JWT in
Mobile Secure store
    IDP-->>AUTH: JWT Token
    AUTH->>DB: Insert user_id + profile
    DB-->>AUTH: User created

    A->>API: Register device
JWT Token
    Note over API: Validate JWT Token
    API->>AUTH: Store device
    AUTH->>DEVICE: Insert device_id
    DEVICE-->>AUTH: Stored

    AUTH-->>API: Registration successful
    API-->>A: user_id + auth token

Tables created


// User Identity data
User
----
user_id
name
profile_photo
created_at
privacy_settings

Device
------
device_id
user_id
push_token
platform
app_version
last_seen

Location Privacy Permissions table
owner_user_id | viewer_user_id | can_view | updated_at
      A       | B              | true     | ...
      B       | A              | false    | ...

SQL: Create index (owner_user_id, viewer_user_id)
User A can view user B

noSQL(ScyllaDB): Partitionkey=(owner_user_id, viewer_user_id)
SQL database indexing
ScyllaDB 		A adds B as friend (friendship ≠ location permission)
A sends a friend request. We need to store the relationship
Friendships table
----------
user_id |friend_id| status  |created_at | updated_at
   A    | B       | ACCEPTED|           |

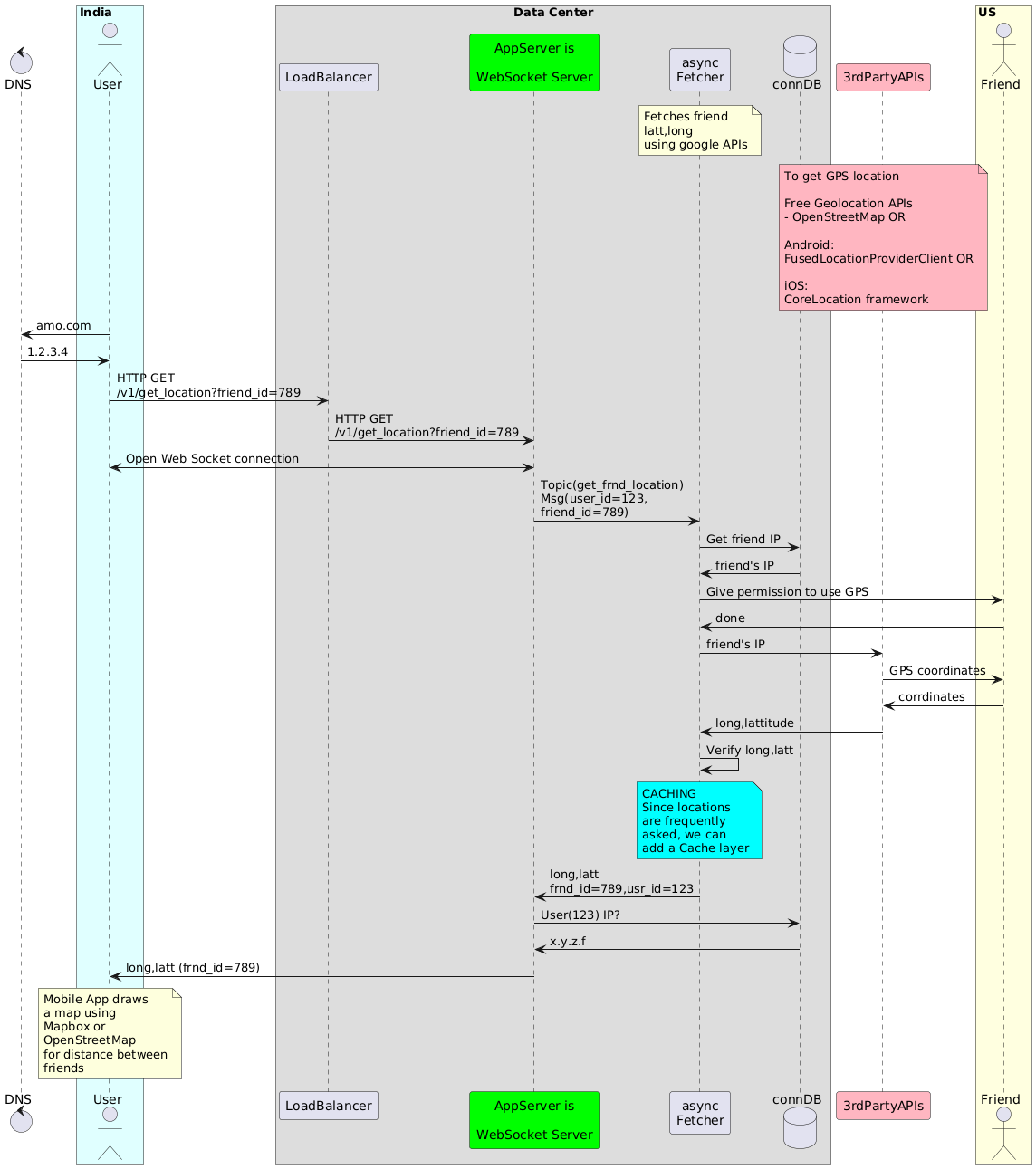

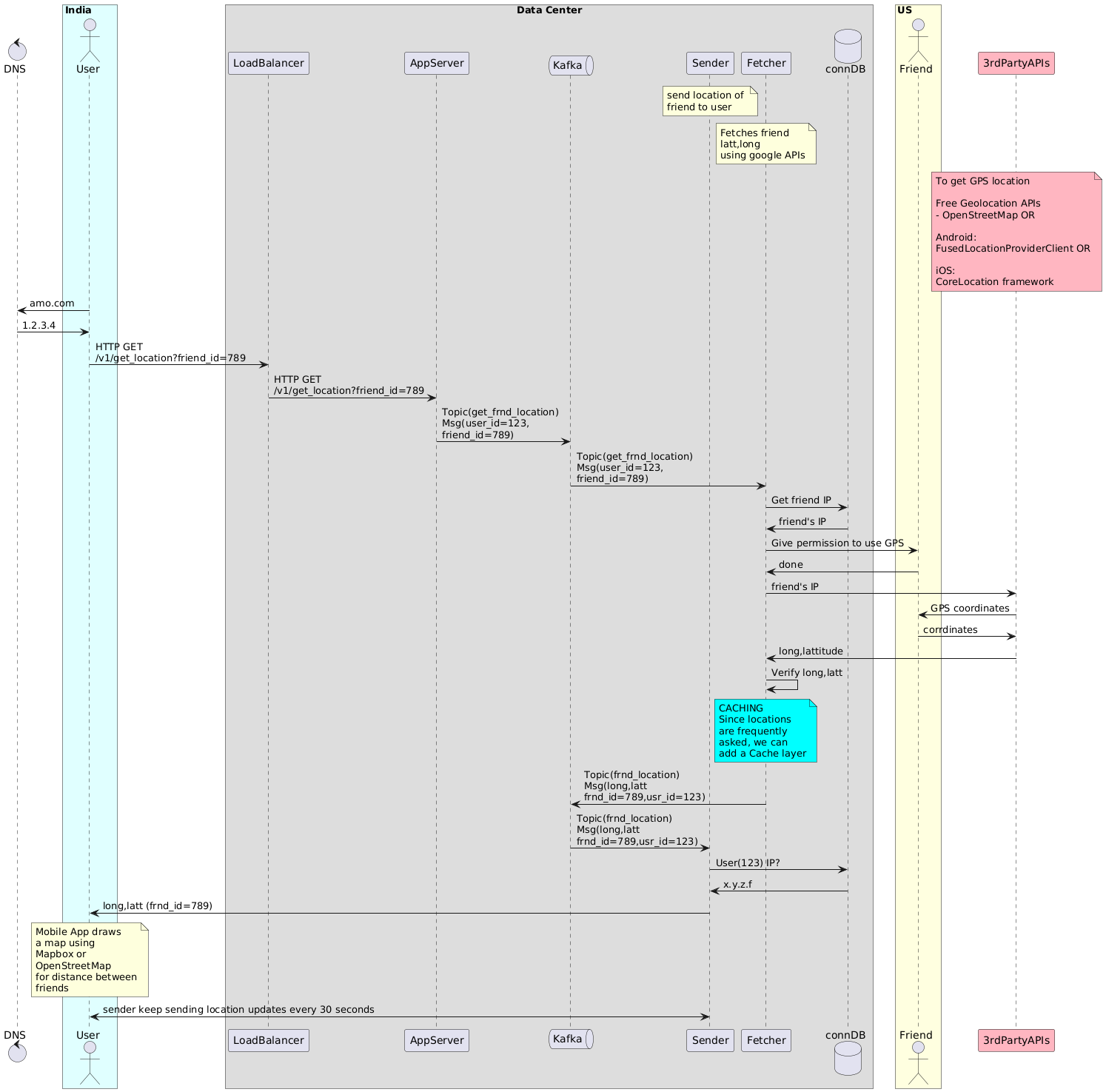

User A send location to Friend B

WebSocket Service
  What is Web Socket
  Websocket Service(pod-1) will open a connection with Mobile-B once Mobile-B comes online
  Websocket service(pod-1) will create a connection information for Mobile-B(eg: conn-B={TCP IP, port})
  Websocket service(pod-1) will update connection information to Redis, Since this connection information is emphemeral and can change. if B dissconnects and comes back online again, Mobile-B might connect to pod-2
API Gateway
Kubernetes Ingress, Pod Scaling: HPA

Ingestion Tier(Location Service) Tasks:

Perform Authentication.
Extract user from Bearer Token / JWT Token 		Validate Header,payload authorization sent from A
latitude ∈ [-90, 90]
longitude ∈ [-180, 180]
timestamp isn't wildly invalid
payload size is reasonable
 Normalize & publish to Redpanda.
Create Internal Event
Topic: location-updates
Partition X
{
    event_id: "evt-98765",
    event_type: "LocationUpdated",
    user_id: "A123",
    lat: 18.5204,
    lon: 73.8567,
    accuracy_m: 8,
    speed_mps: 4.2,
    timestamp: ...
}

Redpanda
Redpanda over kafka: Due to predictable latencies
Partition key = userId. So that all location events for user=A go to the same partition
Partitions, Consumer Groups, Brokers

Consumer Tier:
Consumer reads Topic=location-update & writes to ScyllaDB

user_id       A123
latitude      18.5204
longitude     73.8567
accuracy      8
speed         4.2
timestamp     10:05:30

ScyllaDB(NoSQL DB)
  Why ScyllaDB: millions of requests/sec — where eventual consistency is acceptable
  Over SQL: Because noSQL(implemented using LSM Tree) can scale horizontally while SQL(implemented using BTree) cannot
  Over Cassandra: Seastar Framework is fast wrt Java JVM

Fanout service(Who is allowed to receive A's location?) to Websocket Service
1. Fanout Recieve same Kafka Topic(location-updates) and gets A's friends, preferences from Friendship DB(Location Privacy Permissions table, Friendships table)

Kafka Message
user_id       A123
latitude      18.5204
longitude     73.8567
accuracy      8
speed         4.2
timestamp     10:05:30

2. Fanout svc queries Redis for conn-id of Mobile-B, ie to which pod Mobile-B is connected?

{
  "gateway": "pod-1",
  "connection_id": "conn-b"
}

3. Fanout svc sends {conn-id, userA-lat,lon,timestamp} to websocket svc. This message can be sent over KAFKA(another topic) or gRPC or A custom lightweight protocol or Internal messaging

{
  "connection_id": "conn-b",
  "event": "LOCATION_UPDATED",
  "user_id": "A",
  "latitude": 18.5204,
  "longitude": 73.8567,
  "timestamp": "2026-09-08T06:05:30.123Z"
}

4. Websocket svc recieves msg and find B's location using conn-id and Pushes data immediately since websocket is already opened

sequenceDiagram
    actor A as User A Phone
    participant GLB@{ "type" : "entity"} as Global
Regional GLB
    box AWS AMO Datacenter
        participant API@{ "type" : "entity"}  as API Gateway
        participant KLB@{ "type" : "entity" } as kubernets
Ingress
        participant LOC@{ "type" : "collections" } as Ingestion Tier

Location
Svc
MULTIPOD
        participant Consumer@{"type": "collections"} as Consumer Tier

MULTIPOD
        participant FAN@{"type": "collections"}  as Fanout
Svc
MULTIPOD
        participant K@{"type": "queue"} as Kafka / Redpanda
        participant CUR@{"type": "database"} as Current Location
ScyllaDB
        participant FRIEND@{"type": "database"}  as Friendship /
Privacy DB
        participant Redis@{"type": "database"}  as Redis
        participant WS@{"type": "collections"} as WebSocket
Svc

POD-1
    end
    actor B as User B Phone

    Note over A: A and B are
already friends
A has allowed
B to see A's location

    B->>WS: Open WebSocket connection
GET /ws
Host: amo.com
Authorization:Bearer
    WS-->>B: Connection established
HTTP 200 OK
    Note over WS: conn_id:"conn-b",
Store in Redis User-B
connected to me
    WS->>Redis: Key:userB, value:POD-1

    Note over A: Send attributes
    A ->> GLB:POST /v1/location
Host:amo
Authorization: Bearer
{lat=1,
lon=2,
timestamp,
speed=2m/s}
    GLB->>API: HTTPS{location}
    API->>KLB: HTTPS POST /v1/location

    Note over KLB:Mapping /v1/location
 to Location Svc
    KLB->>LOC: location
    Note over LOC: Authenticate using Bearer Token
Derive username from Bearer Token
    LOC ->> LOC: Validate location, size, timestamp
Publish Location
    K->>K: Partition key=user_id
    LOC->>K: Topic=location-update
{
event_id: "evt-98765",
event_type: "LocationUpdated",
user_id: "A",
lat: 18.5204,
lon: 73.8567,
accuracy_m: 8,
speed_mps: 4.2,
timestamp: ...
}

    K->>Consumer: Topic=location-update
    Consumer->>CUR: INSERT INTO table
user_id A123,latitude:18.5204,longitude:73.8567
accuracy:8,speed:4.2,timestamp:10:05:30

    K->>FAN: Topic=location-update (same msg as above)

    FAN->>FAN: Find friends of A who are eligible to be updated
    FAN->>FRIEND: SELECT friend_id
FROM location_visibility WHERE user_id = 'A123' AND can_view_location = true;
    FRIEND-->>FAN: B

    FAN->>Redis: GET connection:B
    Redis-->FAN:{
"pod": "1",
"connection_id": "conn-b"
}
    FAN->>WS: A's location is updated
{
"connection_id": "conn-b",
"event": "LOCATION_UPDATED",
"user_id": "A",
"latitude": 18.5204,
"longitude": 73.8567,
"timestamp": ""
}
Over KAFKA(another topic) or gRPC or A custom lightweight protocol or Internal messaging

    WS->>WS: Find websocket for conn-b
    WS->>B: {
"event": "LOCATION_UPDATED",
"user_id": "A",
"latitude": 18.5204,
"longitude": 73.8567,
"timestamp": ""
}

    Note over B: Update A's marker on map

Scenarios

B is Offline, later comes online

Mobile-B breaks websocket connection and Web-Socket module updates same in Redis
fanout service quries Redis and no information is recieved
Later B comes online, Mobile-B sends "ping" to WebSocket service(pod-2). Ping means send all updates for me
Websocket service(pod-2) upddates conn-id in Redis and sends a Kafka message.
This message is recieved by Fanout service and finds latest updates of Mobile-B's friends from ScyllaDB(since friends have moved a lot by then).

API Design (CRUD)

REST API?
REST API Versioning(v1,v2)

1. User can create Account on Bump

2. Read location of friend on bump app

3. Update self profile to include friends(whom you will follow)

4. Delete friend

5. Delete Account



curl -X POST -H "Content-Type: application/json"
-d '{"name": "user_id", "long", "lat"}'
http://127.0.0.1:8080/v1/create_account -vvv


// data sent as query parameter
// instead of sending as json data
curl -X GET http://127.0.0.1:8080/v1/get_location?friend_id=friend_id


curl -X PUT -H "Content-Type: application/json" -d
'{
  "user_id": "current_user_id",
  "friends_to_follow": ["new_friend_id"]
}'
http://127.0.0.1:8080/v1/update -vvv


curl -X DELETE -H "Content-Type: application/json"
http://127.0.0.1:8080/v1/delete_friend
-d '{
  "user_id": "id1",
  "friend_id": "friend_to_delete"
}'


curl -X DELETE -H "Content-Type: application/json"
http://127.0.0.1:8080/v1/delete_account
-d '{
  "user_id": "id1",
}'


// Create account
//url=bump.amo.com
POST https://url/v1/create_account
header {
  Authorization: {Bearer "API_KEY_TOKEN"},

  /*Mandatory added by HTTP Start*/
  Content-len: 0
  Host:        //Calculated when req is sent
  UserAgent: Postman
  Accept: */*
  Accept-Encoding: gzip, deflate, br
  Connection: Keepalive
  /*Mandatory added by HTTP End*/
}
body {  //JSON
  "user_name": "",
  "lattitude": "",
  "longitude": ""
}


//Read Location of friends
GET https://url/v1/get_location
header {
  Authorization: {Bearer "API_KEY_TOKEN"},
  ..other fields..
}
body {  //JSON
  "my_username": "",
  "friend_name": "",
}


// Add new friends to look
PUT http://url/v1/update
header {
  Authorization: {Bearer "API_KEY_TOKEN"},
  ..other fields..
}
body {  //JSON
  "my_username": "",
  "friend_name": "",
}


// Add new friends to look
PUT http://url/v1/delete_friend
header {
  Authorization: {Bearer "API_KEY_TOKEN"},
  ..other fields..
}
body {  //JSON
  "my_username": "",
  "friend_id": ""
}


// Add new friends to look
PUT http://url/v1/delete_account
header {
  Authorization: {Bearer "API_KEY_TOKEN"},
  ..other fields..
}
body {  //JSON
  "my_username": ""
}
